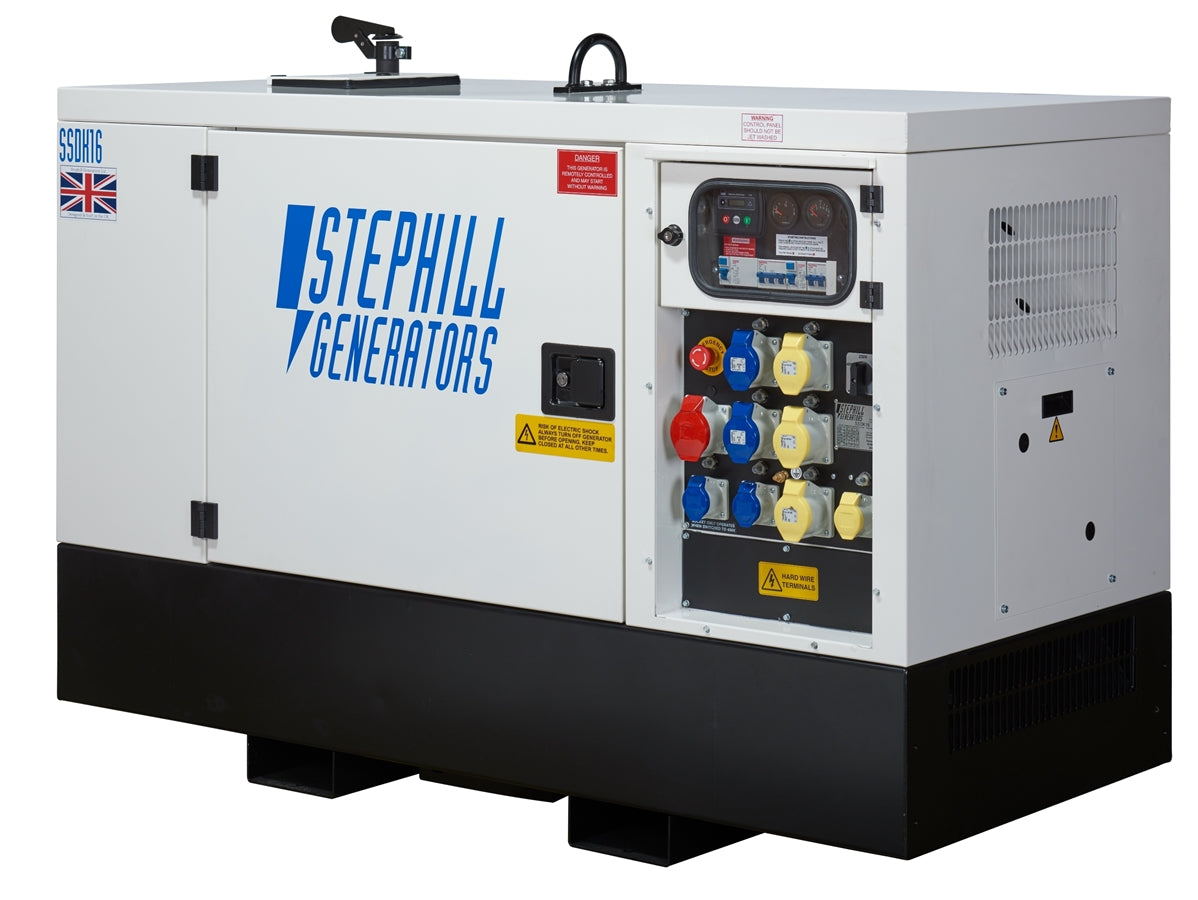

Stephill SSDK16M Kubota Multi Phase Super Silent Diesel Generator 15.9kVA

Before You Buy – MUST READ

• Please be sure this is the generator you require as the return cost is £150.00. This will be deducted from your refund.
• £50 for the carriage used originally to send the goods to you.
• £50 to get this back
• £50 for technical team to fully test & re-shelve.
• Items that are returned due to being damaged or faulty do not apply for the return fee.

Delivery – MUST READ

• This product will incur a delivery charge if being transported to a UK non-mainland address or Scottish Highlands.
• You must be in to accept delivery or Stephill will charge the recipient another carriage fee.
• Next day delivery do not apply to Stephill Generators.
• Usually these can be delivered within 2-3 working days.
• The delivery time may vary due to location or size of generator ordered.

Stock – MUST READ

• All our stock is shipped directly from the manufacturer.
• Please contact via telephone or email to confirm stock & delivery times.

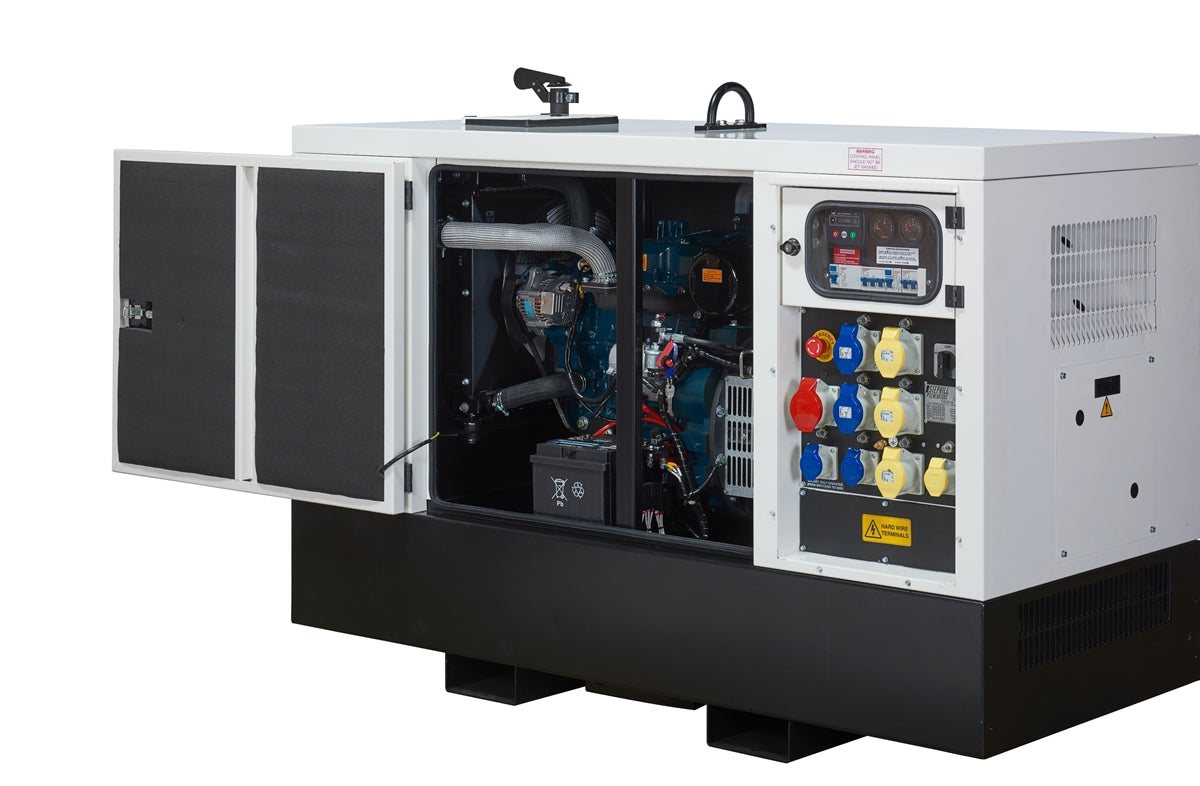

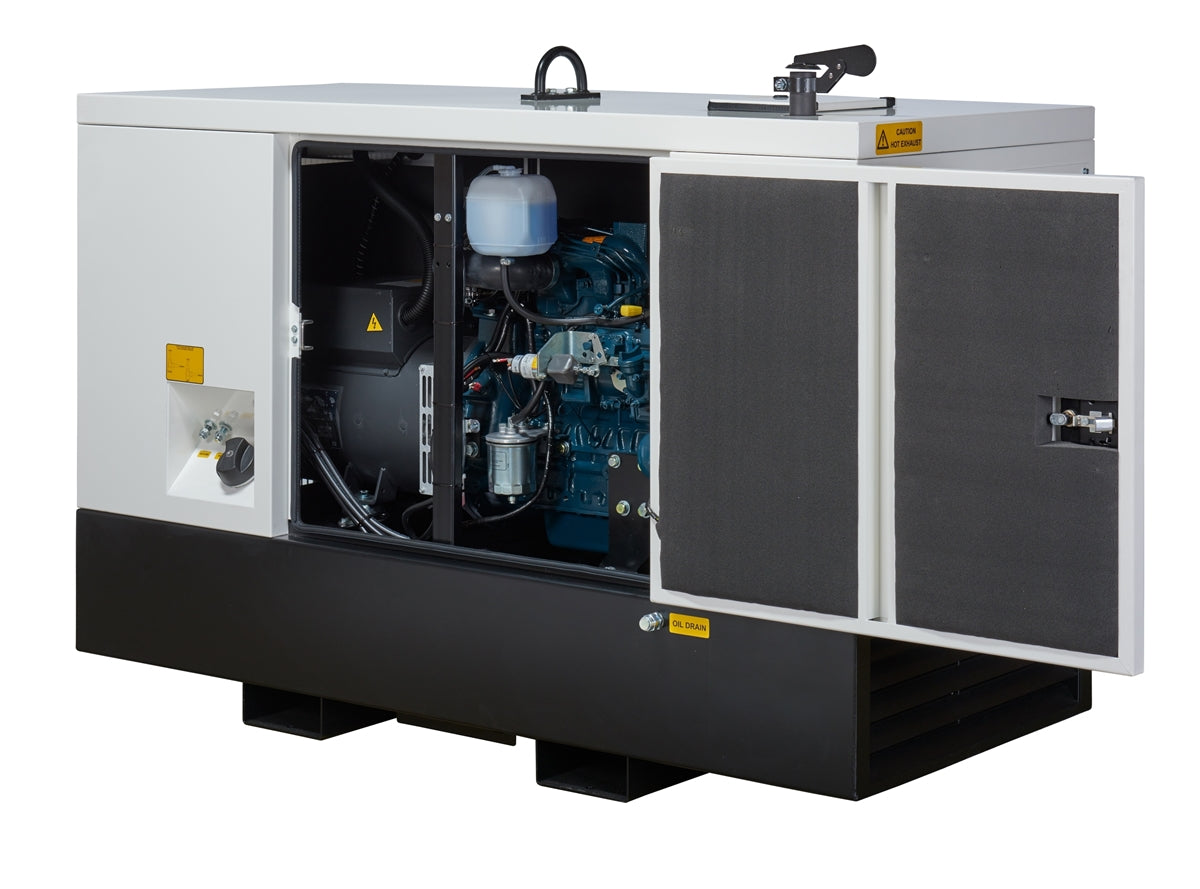

Extremely versatile Multi-phase generators for hire fleets, construction, outdoor event, utility and standby applications. Close fitting acoustic canopy, fully bunded long range tank with connections for remote fuel supply, comprehensive control panel with Deep Sea control system and multiple socket outlets.

Standard Features:

• DSE 3110 control module
• Low oil pressure and high engine temperature shutdowns
• Low fuel level warning
• Zintec weatherproof enclosure
• Lifting eye
• Heavy duty base with fork lift pockets
• 3-Way valve (1/4" BSP) for an external tank
• Oil drain facility
• Battery isolator & emergency stop button for safety
Bunded fuel tank

Control Panel

• MCB overload protection
• RCD protection on 400V & 230V
• 400V: 1x 400V 32A & 1 x spurred 230V 16A BS4343 sockets
• 230V: 2x 230V 32A & 1 x 230V 16A BS4343 sockets
• 115V: 3x 115V 32A & 1 x 115V 16A BS4343 sockets
• Hard wire terminals 400V & 230V
• Fuel, oil & temperature gauges
• Fuel pump prime button (easy bleed upon service)
• Remote start connections
• Emergency stop

DEEP SEA ELECTRONICS 3110 START/STOP CONTROL MODULE

• The module will display warnings, shutdowns & engine status information on the back-lit LCD screen
• Engine shutdowns include, high engine temperature & low oil pressure. low fuel level warning
• Monitoring & protecting AC volts & frequency (Hz)
• Hours run counter
• Battery voltage monitoring
• 2-wire remote start function

Generator Specification

• Voltage: 400/230/115V
• Phase: 1/3 (Multi-Phase)
• Frequency: 50Hz
• Stand-by Power (ESP): 400V @ 15.9 kVA / 12.7 kW
• Cont. Power (PRP): 400V @ 14.5 kVA / 11.6 kW
• Stand-by Power (ESP): 230/115V @ 14.8 kVA / 11.9 kW
• Cont. Power (PRP): 230/115V @ 13.5 kVA / 10.8 kW
• Alternator: 25kVA Meccalte ECP 28-L4C
• AVR: DSR 3Ø Electronic +/- 1%
• Fuel Tank Capacity: 120 Litres
• Autonomy Load 100%: 27 Hours | 4.4 L/h
• Autonomy Load 75%: 34 Hours | 3.5 L/h
• Autonomy Load 50%: 54 Hours | 2.2 L/h
• Autonomy Load 25%: 109 Hours | 1.1 L/h
• LWA: 88
• dBA @ 7M: 63
• dBA @ 4M: 68

Engine Specifiction

• Engine: Kubota D1703-M-E4-BG2
• Emissions Certified: EU Stage V
• Cylinders: 3
• Aspiration: Naturally Aspired
• Cooling: Water Cooled
• Displacement: 1647cc
• Rpm: 1500
• Net Engine Power: Standby 14.5 kWm/Prime 13.2 kWm

Optional trolleys and trailer available, sold separately
