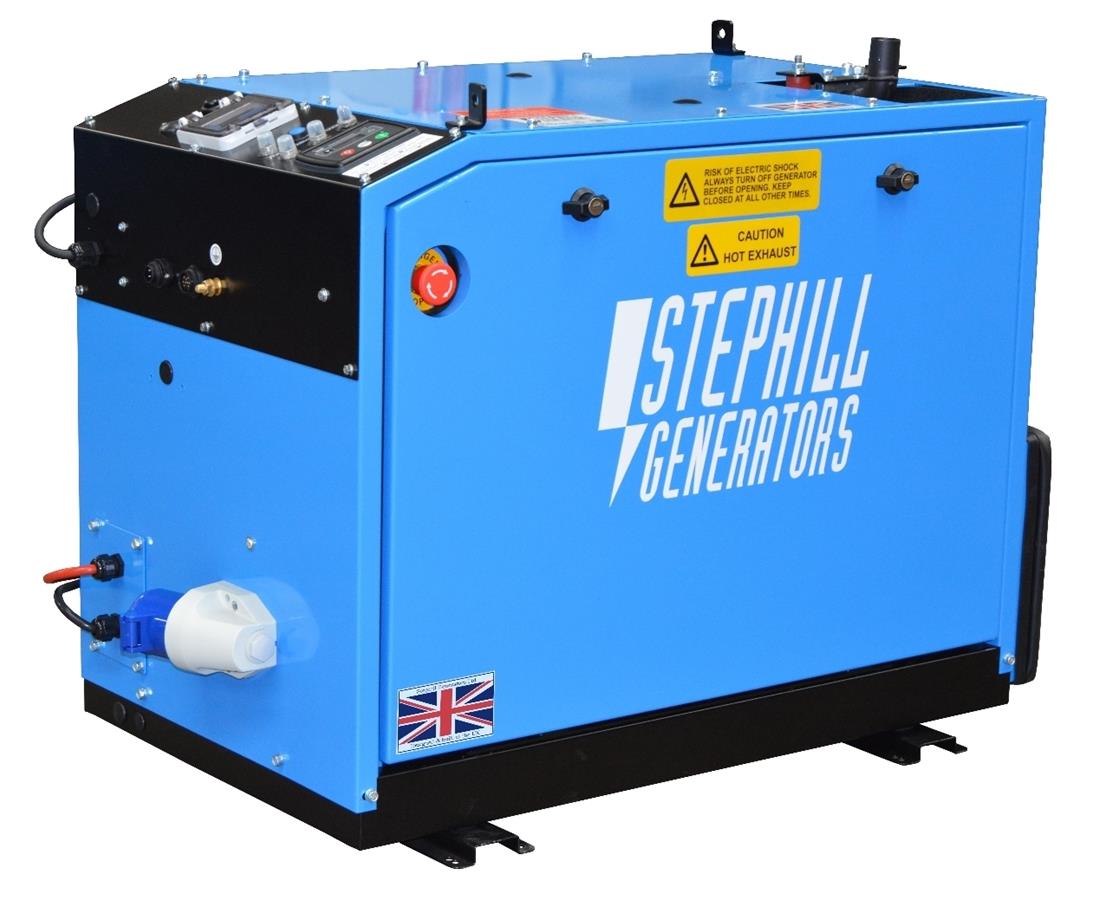

Stephill SSD6000W2 6.0kVA Super Silent Welfare Diesel Generator

Before You Buy – MUST READ

• Please be sure this is the generator you require as the return cost is £150.00. This will be deducted from your refund.
• £50 for the carriage used originally to send the goods to you.
• £50 to get this back
• £50 for technical team to fully test & re-shelve.
• Items that are returned due to being damaged or faulty do not apply for the return fee.

Delivery – MUST READ

• This product will incur a delivery charge if being transported to a UK non-mainland address or Scottish Highlands.
• You must be in to accept delivery or Stephill will charge the recipient another carriage fee.
• Next day delivery do not apply to Stephill Generators.
• Usually these can be delivered within 2-3 working days.
• The delivery time may vary due to location or size of generator ordered.

Stock – MUST READ

• All our stock is shipped directly from the manufacturer.
• Please contact via telephone or email to confirm stock & delivery times.

STANDARD FEATURES

• DSE 3110 control module.
• Low oil pressure, high engine temperature and low fuel level shutdowns.
• Manual and/or 2-wire remote start
• Compact designed acoustic low noise, low vibration cabinet
• Removable door for complete access to service side.
• Generator slides out from canopy for easy inspection & maintenance.
• Removable inspection roof.
• Emergency stop button for safety.
• Oil drain facility.
• 12V DC battery charging system

CONTROL PANEL

• MCB Overload protection.
• RCD Earth leakage protection (100mA)
• 1x 32A 230V BS4343 socket - can be located on the control panel or canopy side panel.
• Fuel pump prime button (easy bleed upon service).
• Connecting cable supplied for low fuel signal to a compatible fuel sender.

DEEP SEA ELECTRONICS 3110 AUTO START CONTROL MODULE

• The module will display warnings, shutdowns & engine status information on the back-lit LCD screen
• Engine shutdowns include, high engine temperature, low oil pressure and low fuel level.
• Monitoring & protecting AC volts & frequency (Hz).
• Hours run counter.
• Battery voltage monitoring.
• Remote 2-wire start function.

GENERATOR SPECIFICATION

• Voltage: 240 V
• Phase: 1
• Frequency: 50 Hz
• Prime Power (PRP): 6.0 kVA / 4.8kW
• Alternator: Meccalte S20W-95
• LWA: 90
• dBA @ 7M: 65

ENGINE SPECIFICATION

• Engine: Yanmar L100V
• Emissions Certified: EU Stage V
• Cylinders: Single
• Distribution: O.H.V.
• Aspiration: Naturally Aspired
• Cooling: Air
• Displacement: 0.435litres
• Rpm: 3000

DIMENSIONS

• Length: 960mm
• Width: 550mm
• Height: 730mm
• Weight: 178kg
