Home » Stephill SSD10000S 10.0 kVA Kubota Water Cooled Super Silent Diesel Generator
SKU: STE-SSD10000S EAN: 5055974444010

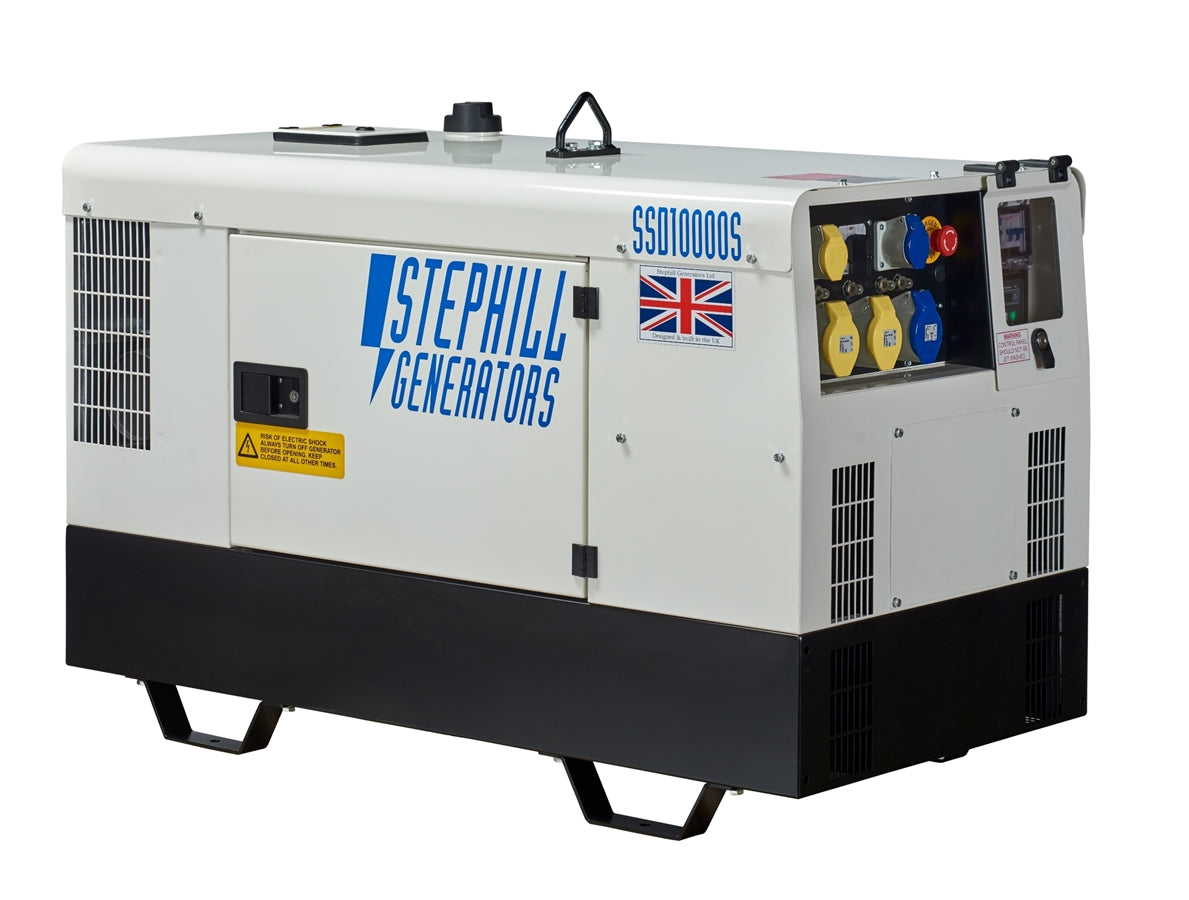

Stephill SSD10000S 10.0 kVA Kubota Water Cooled Super Silent Diesel Generator

£6,998.98 inc. VAT £5,832.48 Ex. VAT
Only 2 left

Before You Buy – MUST READ

  • Please be sure this is the generator you require as the return cost is £150.00. This will be deducted from your refund.
  • £50 for the carriage used originally to send the goods to you.
  • £50 to get this back
  • £50 for technical team to fully test & re-shelve.
  • Items that are returned due to being damaged or faulty do not apply for the return fee.

Delivery – MUST READ

  • This product will incur a delivery charge if being transported to a UK non-mainland address or Scottish Highlands.
  • You must be in to accept delivery or Stephill will charge the recipient another carriage fee.
  • Next day delivery do not apply to Stephill Generators.
  • Usually these can be delivered within 2-3 working days.
  • The delivery time may vary due to location or size of generator ordered.

Stock – MUST READ

  • All our stock is shipped directly from the manufacturer.
  • Please contact via telephone or email to confirm stock & delivery times.

Complete with close fitting acoustic canopies and long run fuel tanks. Providing super silent, highly portable and versatile power for demanding applications including hire and construction sectors.

Standard Features

  • DSE 3110 control module - See below for details
  • Battery isolator & emergency stop button for safety
  • Low oil pressure and high engine temperature shutdowns
  • Lifting eye
  • Oil drain facility
  • Remote start facility
  • Fuel tank drain facility

Control Panel

  • DSE 3110 control module
  • RCD earth leakage protection (230V)
  • MCB overload protection
  • Voltage selector switch
  • Emergency stop button
  • 230V: 1 x 32A & 1 x 16A BS4343 sockets
  • 115V: 2 x 32A & 1 x 16A BS4343 sockets
  • Overload protection for each individual socket
  • Fuel gauge
  • Fuel pump prime button (easy bleed upon service)
  • Remote start connections

DEEP SEA ELECTRONICS 3110 START/STOP CONTROL MODULE

  • The module will display warnings, shutdowns & engine status information on the back-lit LCD screen
  • Engine shutdowns include, high engine temperature & low oil pressure. low fuel level warning
  • Monitoring & protecting AC volts & frequency (Hz)
  • Hours run counter
  • Battery voltage monitoring
  • 2-wire remote start function

Dimensions

  • Length: 1285mm
  • Width: 655mm
  • Height: 900mm
  • Weight: 322kg

General Technical Specification

  • Voltage: 230/115v
  • Phase: 1
  • Frequency: 50Hz
  • Continuous Power: 10.0 kVA, 8.0 kW
  • Alternator: NSM C112 NB
  • Fuel Tank Capacity: 37 Litres
  • Autonomy 100% Load: 10 Hours | 3.7 L/h
  • Autonomy 75% Load: 13 Hours | 2.8 L/h
  • Autonomy 50% Load: 20 Hours | 1.8 L/h
  • Autonomy 25% Load: 41 Hours | 0.9 L/h
  • LWA: 92
  • dBA @ 7M: 67
  • dBA @ 4M: 72

Engine Specification

  • Engine Kubota D722-E4B
  • Emissions Certified: EU Stage V
  • Cylinders: 3
  • Aspiration: Naturally Aspired
  • Cooling: Water cooled
  • Displacement: 719cc
  • Rpm: 3000rpm
  • Net Engine Power: Continuous 10.3 KWm/Net intermittent

Trolley and trailer available (sold separately), please enquire for pricing
