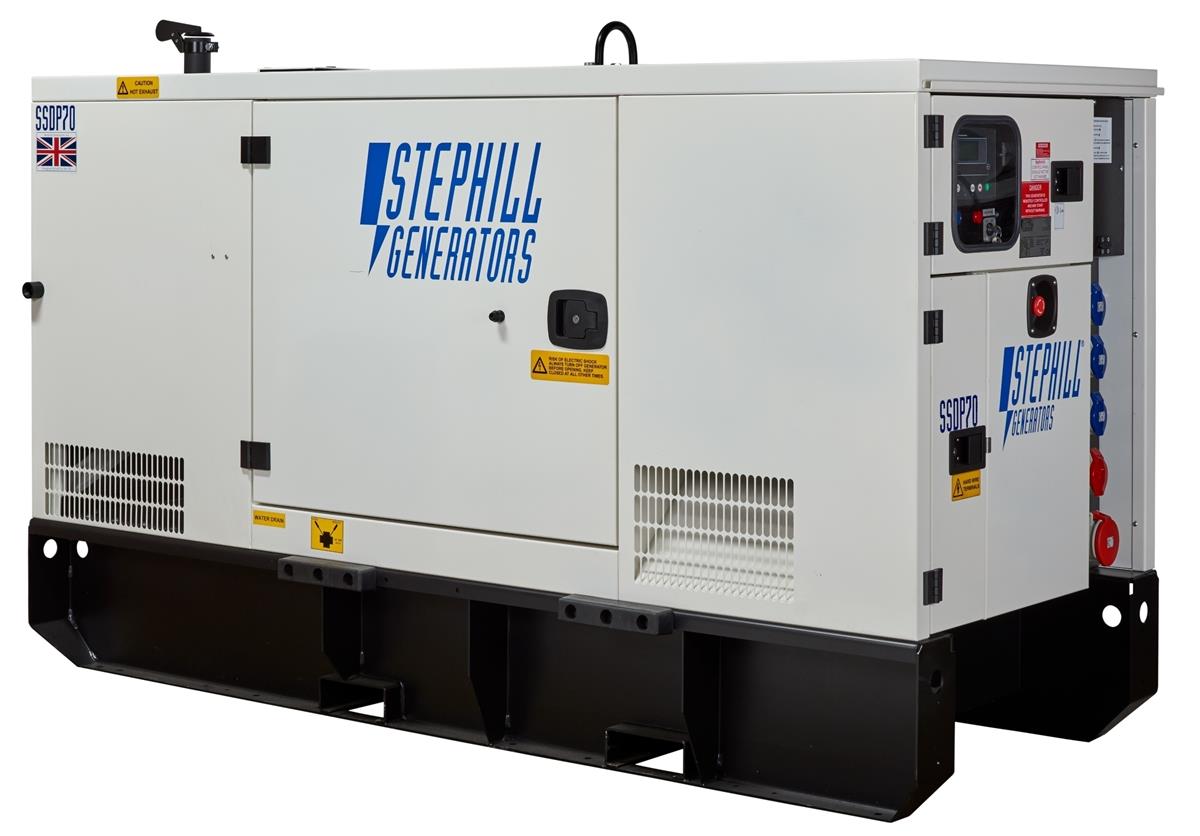

Stephill SSDP703PH 70.0kVA Super Silent Diesel Generator

STANDARD FEATURES

• Low oil pressure, high engine temperature and low radiator coolant level shutdowns..
• Low fuel level warning
• Lifting eye
• Zintec weatherproof enclosure
• 6-Way diverter valve complete with remote fuel tank quick release (3/8" BSP) fittings
• Heavy duty 5mm base with fork lift pockets.
• Fork lift hard rubber bumpers.
• Oil sump pump.
• Battery isolator & emergency stop button for safety.
• Bunded fuel tank
• Radiator water drain facility.

CONTROL PANEL

• DSE 6110 control module - see below for details .
• Hinged control panel for easy access
• MCB overload protection.
• Variable RCD protection (30mA - 30A).
• RCD bypass switch
• 1x 400V 32A & 1x 400V 63A BS4343 sockets.
• 1x 230V 16A & 2x 230v 32A BS4343 sockets
• RCBO protection on all 230V sockets.
• Hard wire terminals
• Remote start connections.
• Emergency stop.

DEEP SEA ELECTRONINCS 6110 START/STOP CONTROL MODULE

• The module will display warnings, shutdown & engine status information on the back-lit LCD screen.
• Monitoring engine speed, oil pressure, coolant temperature, coolant level & fuel level.
• Volts, HZ, Amps, kW & kVA monitoring & protection.
• Service hours counter with maintenance warning.
• Battery voltage monitoring.
• 2-wire remote start function.
• Remote communication (telemetry) compatible.

GENERATOR SPECIFICATION

• Voltage: 400/230 V
• Phase: 3
• Frequency: 50Hz
• Standby Power: 67.0 kVA / 53.6 kW
• Prime Power: 60.3 kVA / 48.2 kW
• Alternator: 63kVA Meccalte ECP32-2M4
• AVR: DER 3Ø Electronic +/- 1%
• Fuel tank capacity: 350 Litres
• Autonomy 100% Load: 25 Hours | 13.9 Litres per hour
• Autonomy 75% Load: 33 Hours | 10.4 Litres per hour
• Autonomy 50% Load: 48 Hours | 7.2 Litres per hour
• Autonomy 25% Load: 85 Hours | 4.1 Litres per hour
• LWA: 90
• dBA @ 7m: 65
• dBA @ 4m: 70

ENGINE SPECIFICATION

• Engine: Perkins 1103A-33 TG2
• Emissions certified: Non certified
• Cylinders: 3
• Aspiration: Naturally Aspired
• Cooling: Water cooled
• Displacement: 3.3 Litres
• Rpm: 1500
• Net Engine power kWm: 59.3
• Cooling fan air flow: 89m³/min
• Exhaust gas flow: 10.4m³/min

DIMENSIONS

• Length: 2450mm
• Width: 1000mm
• Height: 1490mm
• Weight: 1490kg (Wet)/1790Kg (Dry)

Standby Power: Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source in accordance with ISO 8528-1.

Prime Power: Applicable for supplying power to varying electrical load for unlimited hours in accordance ISO 8528-1.
